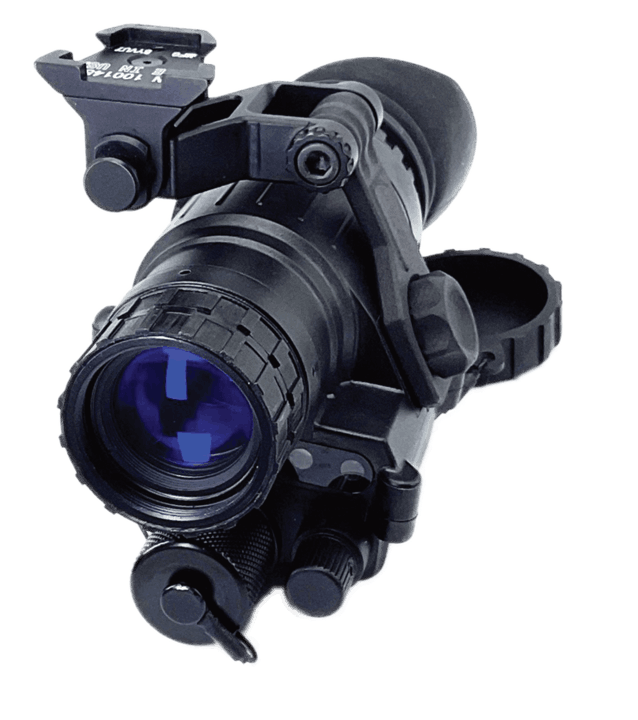

An articulating J-ARM for PVS-14 night vision devices compatible with PVS-15/PVS-18 dovetail style helmet
mounts.
The J-14 ARM is built from 6061 Aluminum and additive-manufactured polymer parts.
Features:
• PVS-14 mount interface
• Adjustable for right/left eye
• IPD adjustments
• Flip-out to stow position
Proudly designed and made in Texas.

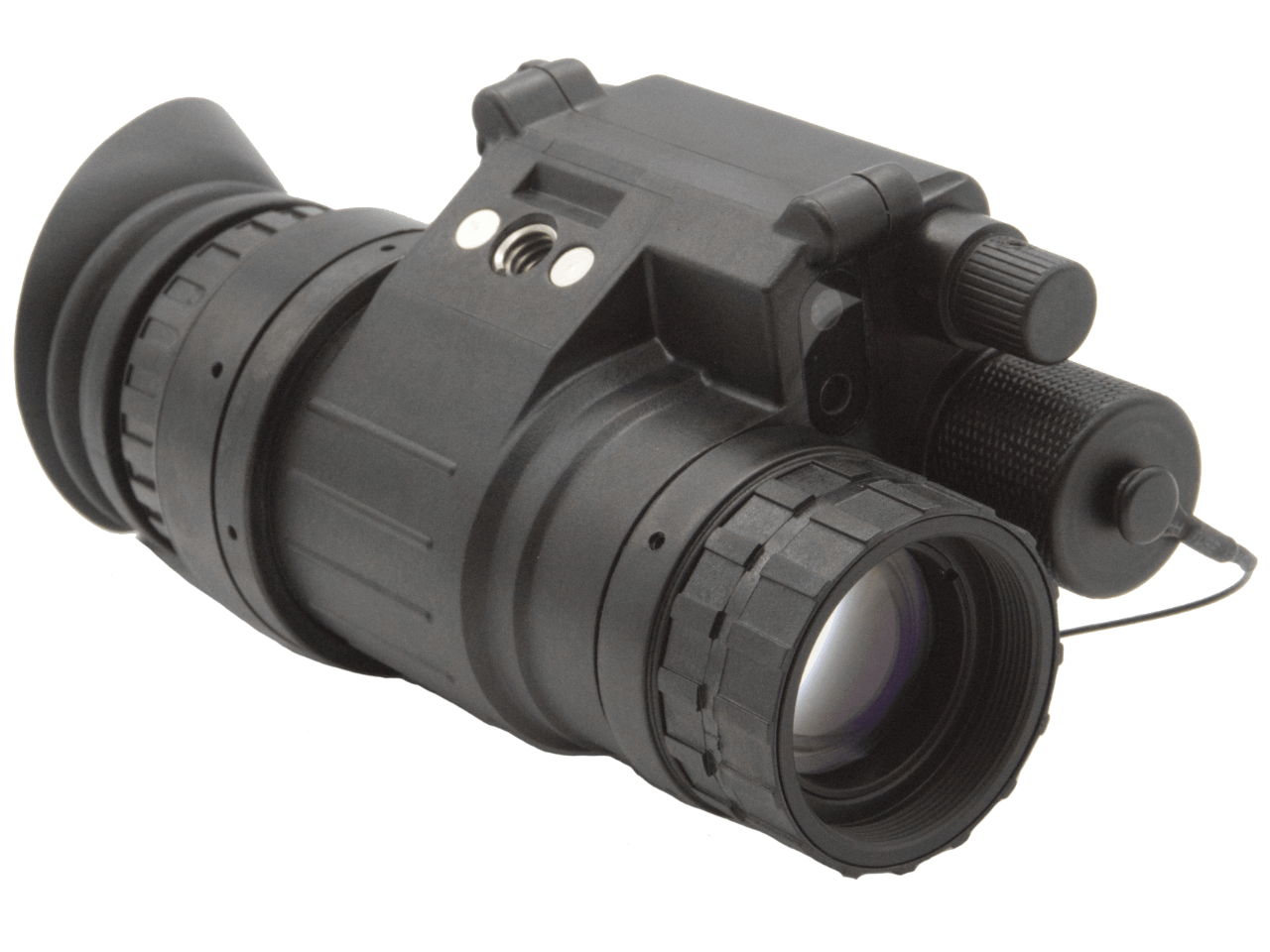

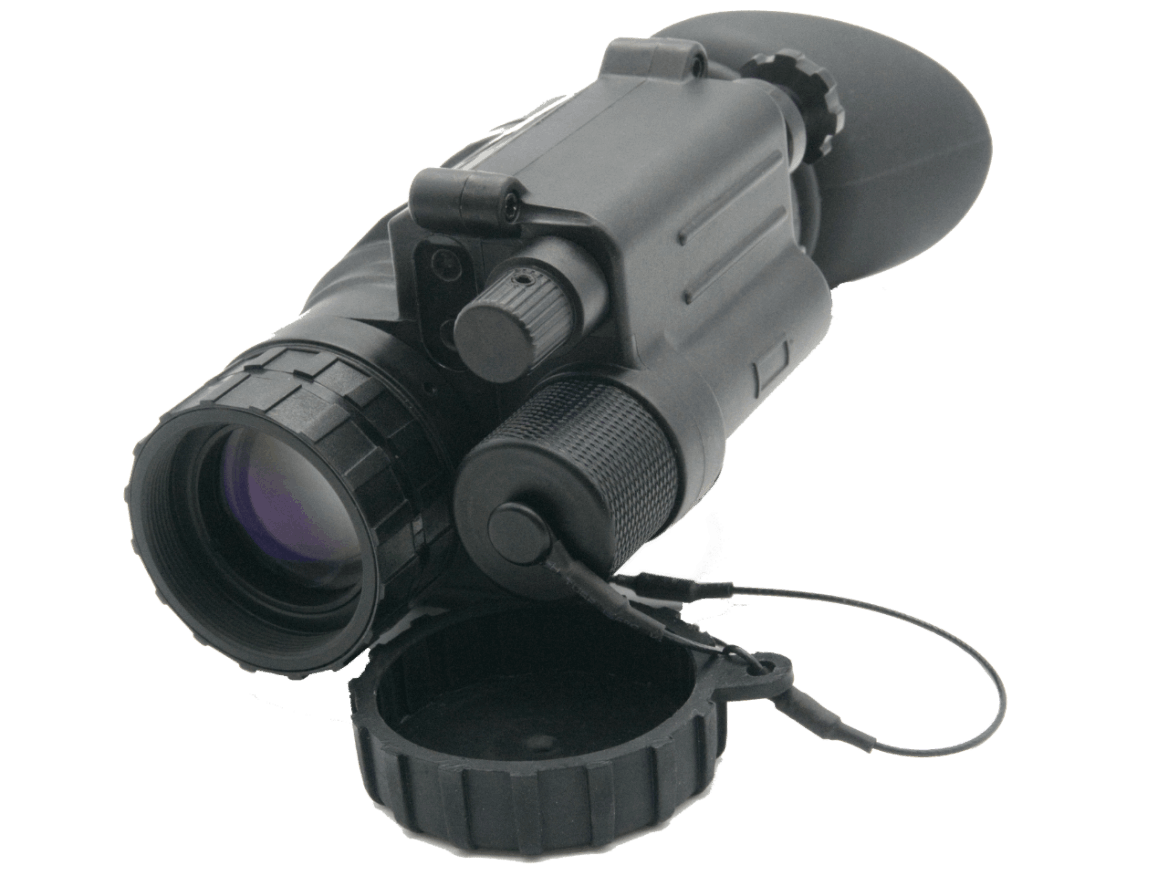

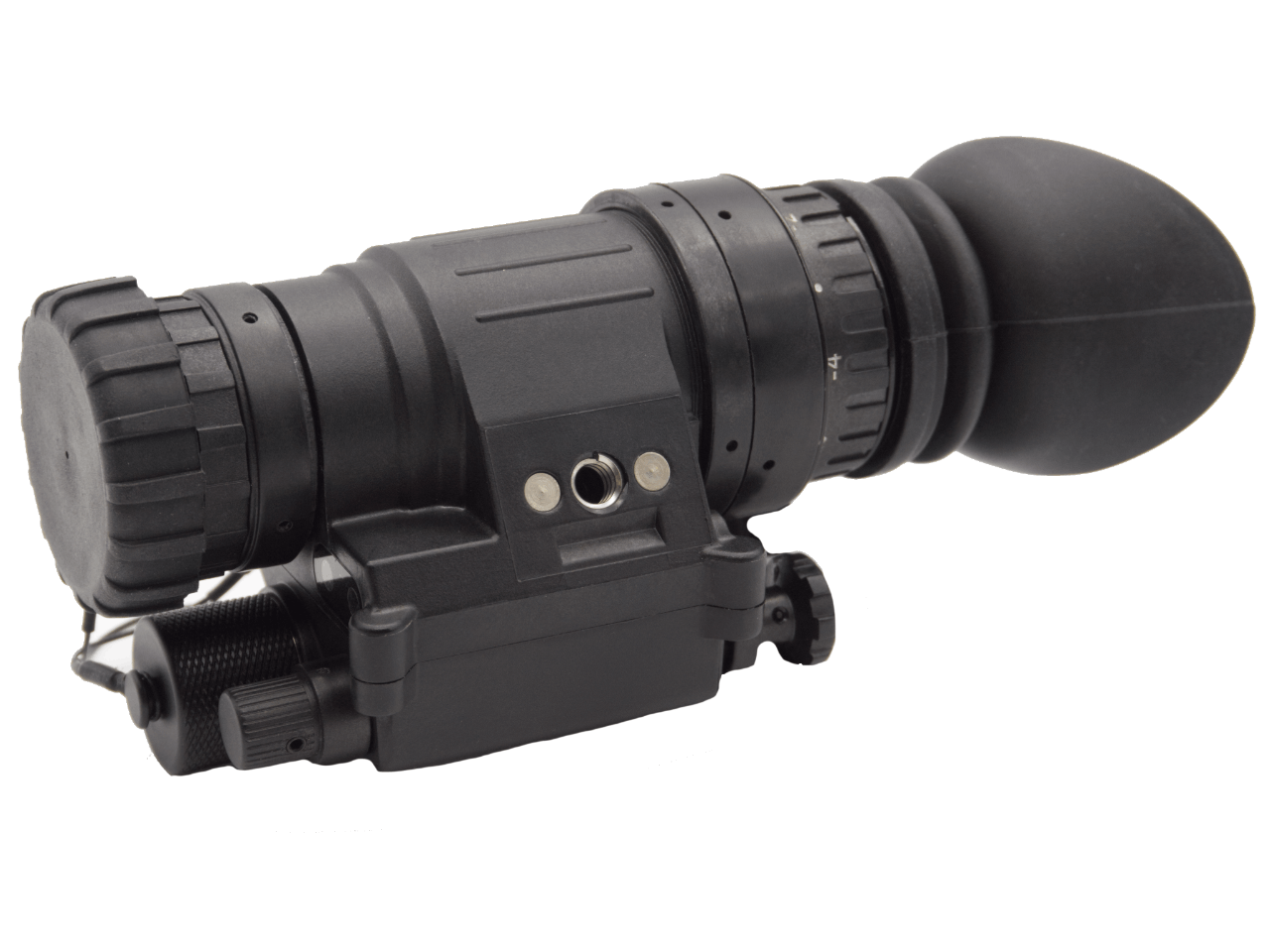

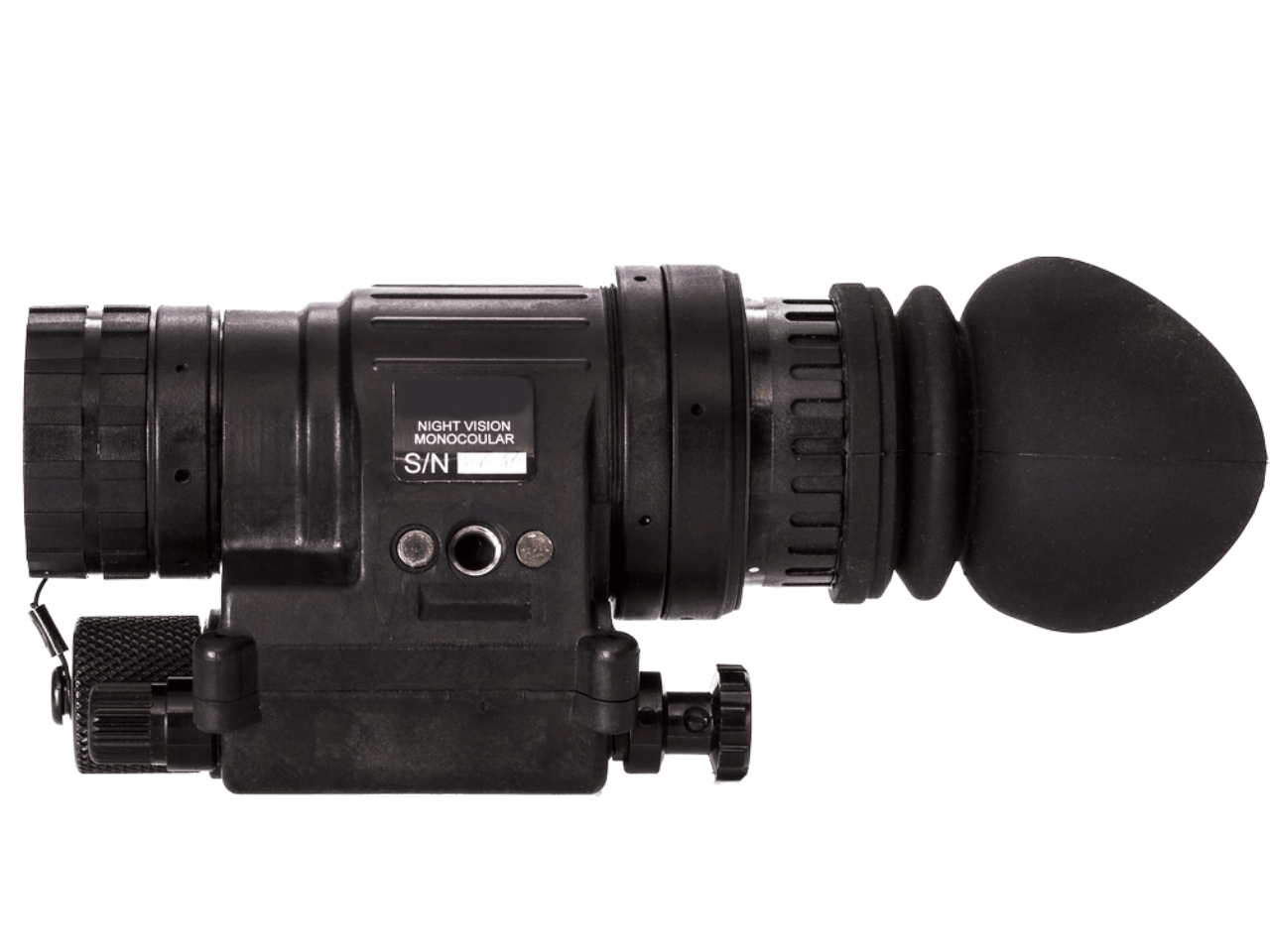

The PVS-14 is a multi-purpose Night Vision Monocular using an Image Intensifier Tube.
Intelligent Sensors and Systems assemble and test all PVS-14 in the U.S.A and offers multiple configurations to meet your requirements.

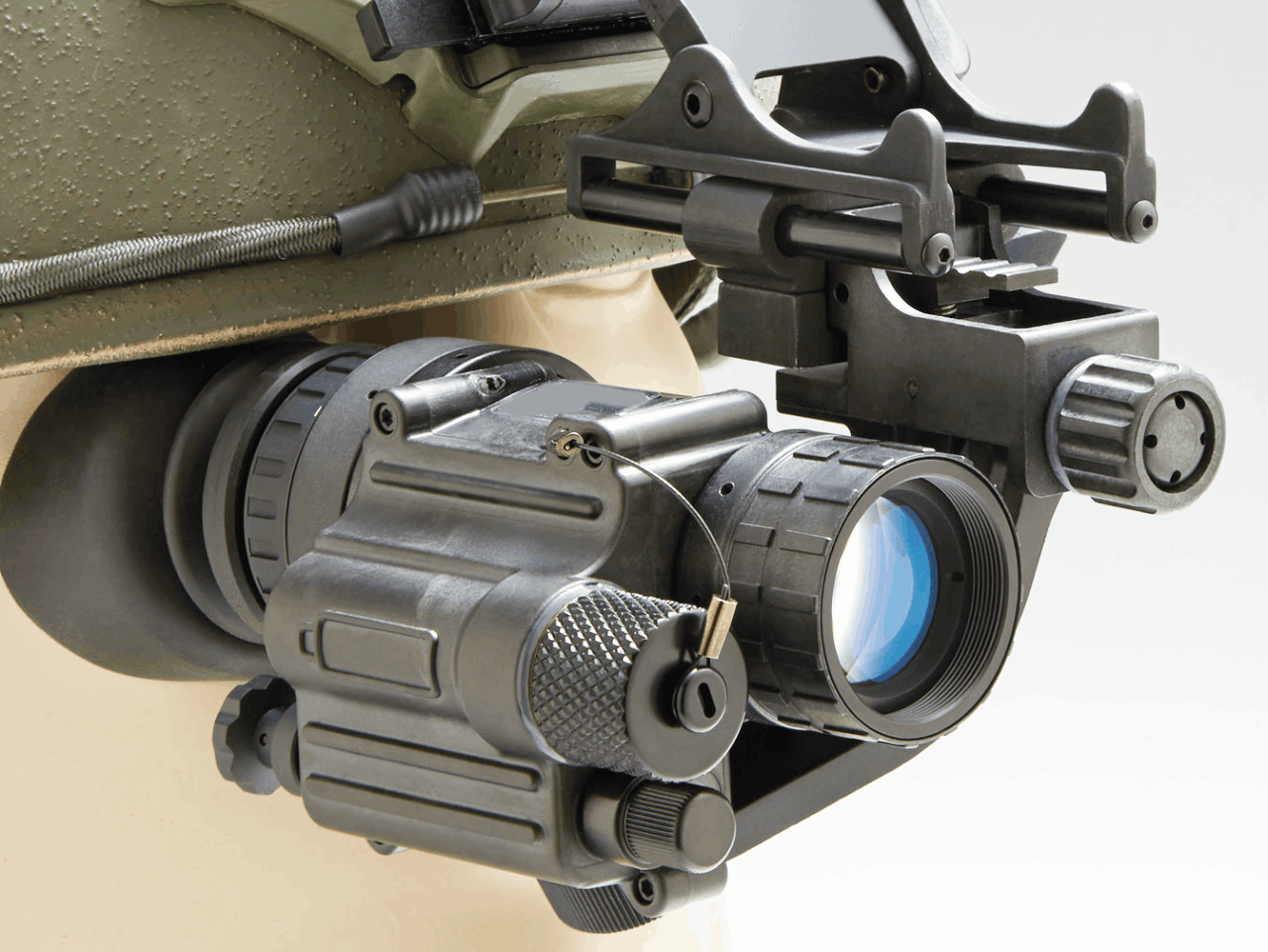

The Intelligent Sensors and Systems PVS-14 Night Vision Monocular is compact, rugged, and lightweight. The PVS-14 is a multi-purpose flexible system that can be used as a handheld device or mounted on a helmet or headgear for improved mobility and comfort. Its efficient power design provides battery life of up to 40 hours with continuous operation on a single AA battery with an integrated low battery warning LED.
The PVS-14 provides controls for a built‐in short-range IR illuminator, automatic high light cut-off sensor, and “flip‐up” OFF magnetic feature switch. This system has durable, robust, and lightweight housing construction and provides the best balance between ergonomics and performance in the industry.
The PVS-14 is a versatile system and can be configured with both Generation 3 or Generation 2 image intensifier tubes and either standard or lightweight optics. We build each system to your specification using Image Intensifier Tubes from Elbit Systems of America, PHOTONIS, and L3Harris with either green or white phosphor.
| Parameter | Value | Unit | Comment |
|---|---|---|---|
| Image Intensifier Type | Gen 2 or Gen 3 | - | Configuration dependent |
| Phosphor Color | Green or White | - | Configuration dependent |
| Figure of Merit | - | - | Configuration Dependent |
| Signal to Noise Ratio (SNR) | - | - | Configuration Dependent |
| Optical Magnification | 1 X | - | Unity Magnification |
| Effective Focal Length | 27 | mm | f/1.2 |
| Field of View | 40 | Degrees | - |
| Focus Range | 0.25 to Infinity | m | - |
| Eye Relief | 25 | mm | - |
| Diopter Adjustments | -6 to +2 | Diopters | - |
| LED Indicators | IR On Low Battery | - | - |
| Manual Gain Control | Yes (Built-in) | - | - |
| Bright Light Cut-Off | Yes (Built-in) | - | - |
| Infrared Illuminator | Yes (Built-in) | - | - |
| Battery Type | 1X AA Battery | - | - |
| Battery Life | 40+ | Hours | - |
| Operating Temperature | -40 to +49 | Degrees Celsius | - |
| Storage Temperature | -40 to +85 | Degrees Celsius | - |
| Environmental Rating | Waterproof | - | - |
| Dimensions | 110 x 51 x 57 | mm x mm x mm | - |
| Weight | < or = 300 (Light Weight Optics) < or = 355 (Standard) | Grams | Configuration Dependent |
| Warranty | Limited 3-year | - | Limited Warranty |
The table below shows some of the image intensifier tubes we typically put in PVS-14. Full MIL-SPEC image intensifiers are also available. Contact us for more details on options.
| Image Intensifier | Image Tube | Phosphor Color | FOM | SNR | Resolution (lp/mm) |
|---|---|---|---|---|---|
| PHOTONIS | Gen 2 | WHITE | > 1800 | > 26.5 | > or = 62 |
| ELBIT | Gen 3 | GREEN/WHITE | > 1400 | > or = 21 | > or = 64 |
| L3H | Gen 3 | WHITE | > 1540 | > or = 21 | > or = 64 |
Some baseline configurations of our PVS-14 are available in our online store.
This web-page consists of basic marketing information that is not defined as technical data under ITAR Part 120.10. Export of this product is regulated by the U.S. Department of State in accordance with guidelines of “International Traffic Arms Regulations (ITAR)”. The Export of this product without proper licensing is strictly prohibited. Please contact Intelligent Sensors and Systems to receive further information on how to obtain proper licensing from the U.S. Department of State.
